FORTIN EVOGMT1 Remote Start Module & T-Harness Kit for 2010-2022 GM Standard Key Vehicles - Easy Installation & Keyless Entry for GM Trucks, SUVs, and Cars

Product Description

The EVO-GMT1 is the ultimate Factory Fit, ALL-IN-ONE data immobilizer bypass, doorlock, alarm & remote start interface with T-Harness combo module for Cadillac, Chevrolet, Buick & GMC Flip-Key vehicles. It raises the standard of hassle-free installation convenience to a whole new level. It uses a multiple bus architecture with 10 separate communication ports that provide more complete functionality on every supported vehicle.

Features:

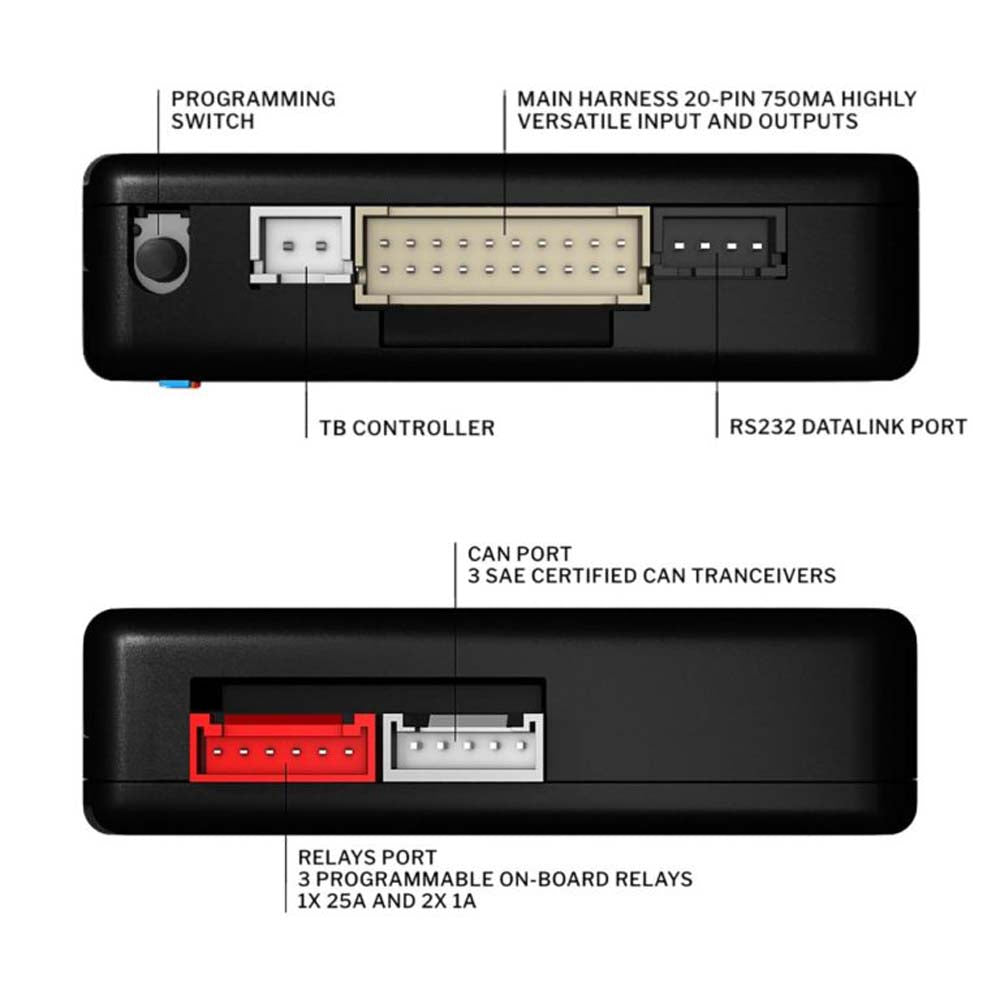

• 3 x CAN-Bus controllers.
• 3 x General purpose controllers (J1850, Class 2, encrypted key etc.).
• 1 x On-board relay (SPDT).
• 1 x On-board relay (DPDT).
• 1 x Analog controller 0-12VDC @ 20mV steps (Passlock, MUX).

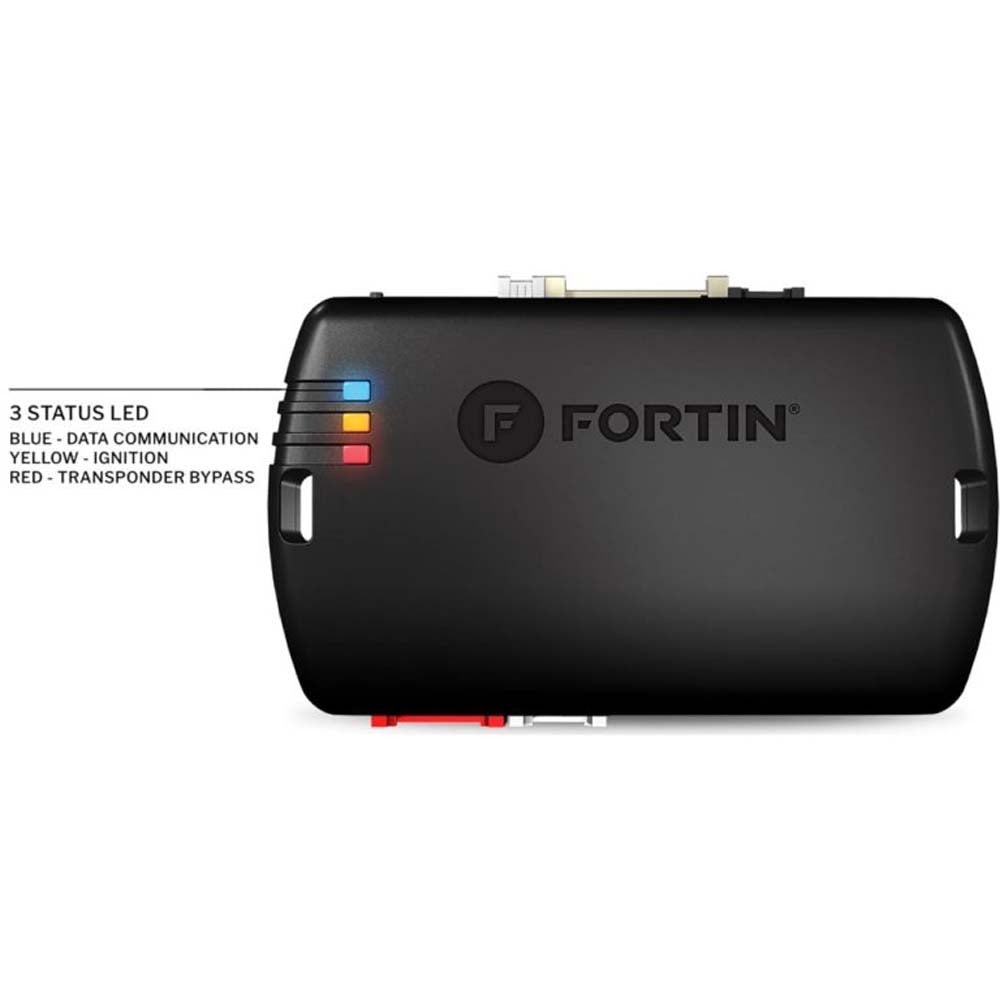

• 3 x On-board LEDs for simplified programming and diagnostics.
• 1 x Factory Fit T-Harness for easy install.
• 1 x 2-way datalink port for data-to-data (RS-232) communication with compatible remote-starters and security-systems.
• 1 x 20 Pin general purpose plug for wire-to-wire connections with non-datalink equipped remote-starters and security-systems.
• Self-Learning algorithm automatically detects the vehicle during programming and adjusts accordingly.

Specifications:

• SKU: EVOGMT1
• Manufacturer Model: EVOGMT1
• UPC: 770350002473
• Brand: Fortin
• Weight: 0.50 lbs
• Carton Dimensions: 7.5 × 4.75 × 1.75 in
