Diamond Audio MSHXM692LK 14+ Harley Davidson Speaker Cut in Lid Kit - Premium Motorcycle Audio Upgrade for Harley Touring Models - Perfect for Long Rides & Road Trips

Product Description

Features:

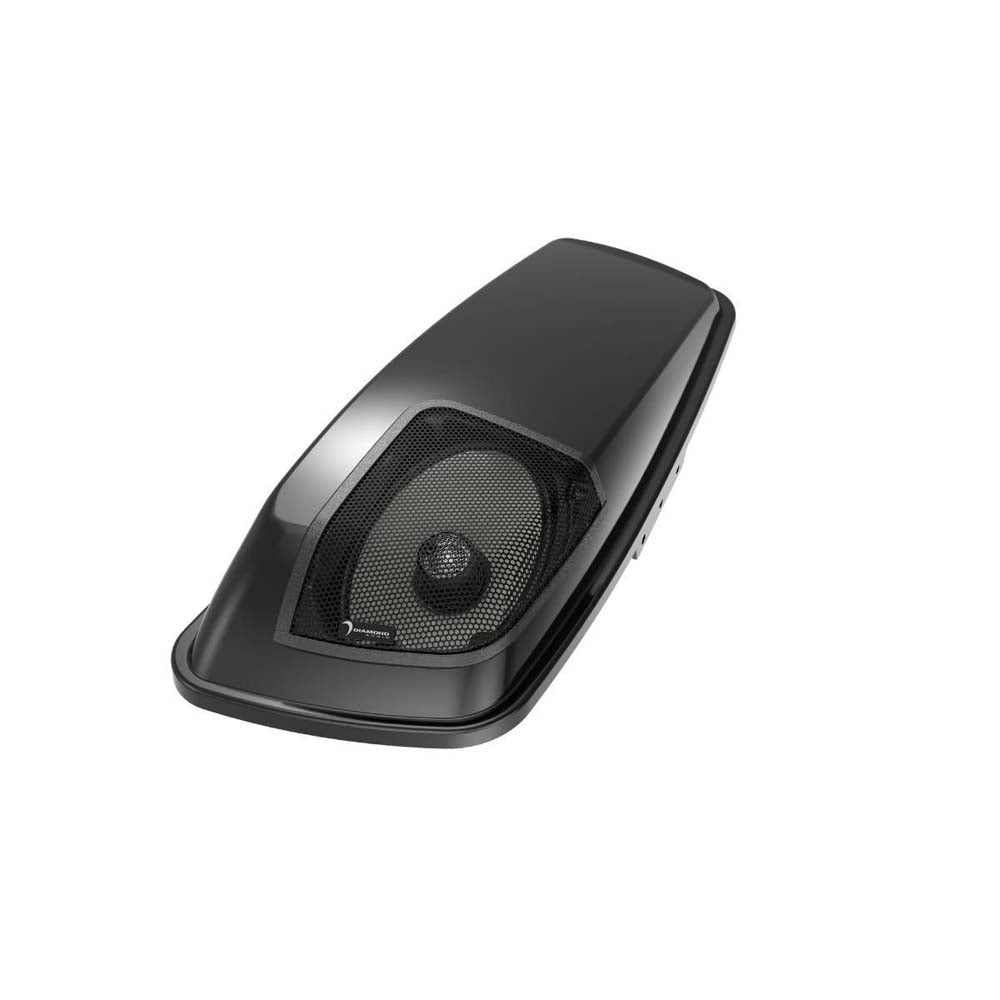

• Harley Davidson ® 14+ Cut in Lid Kit
• Included Rubber Gasket for HXM69F2

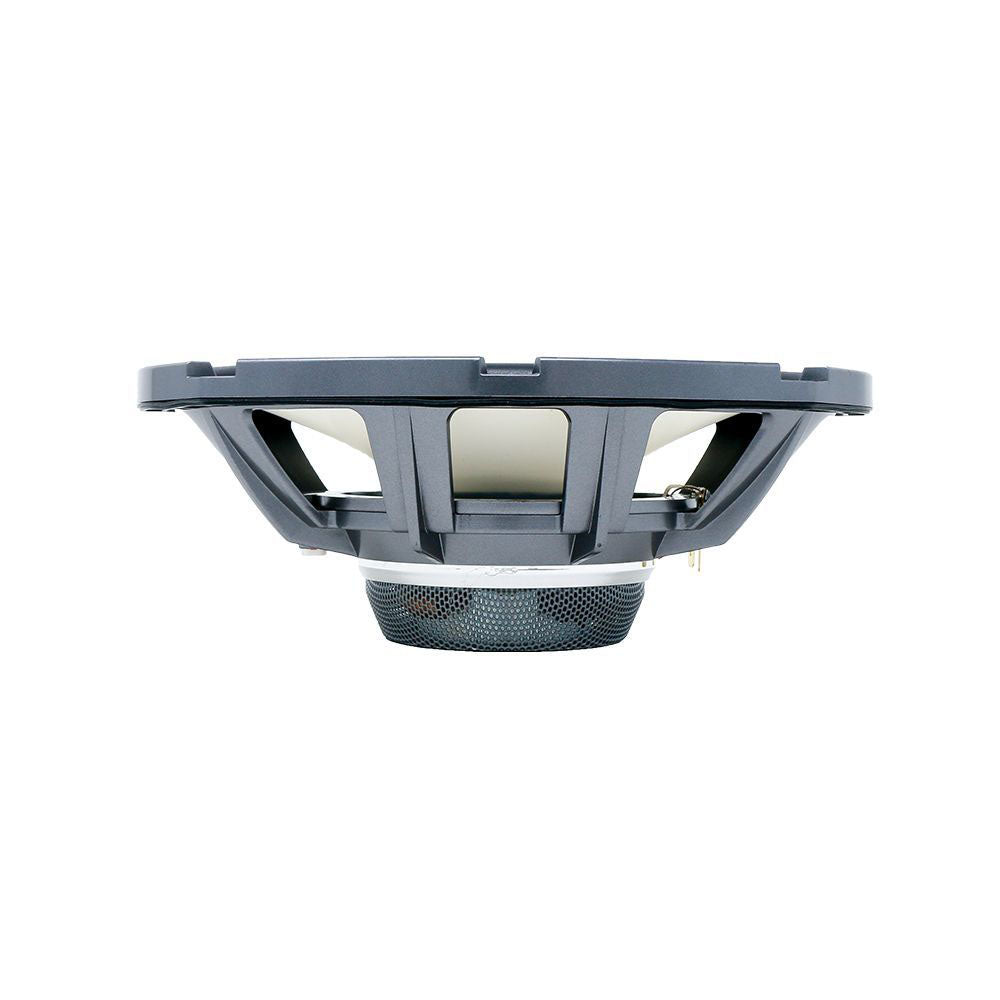

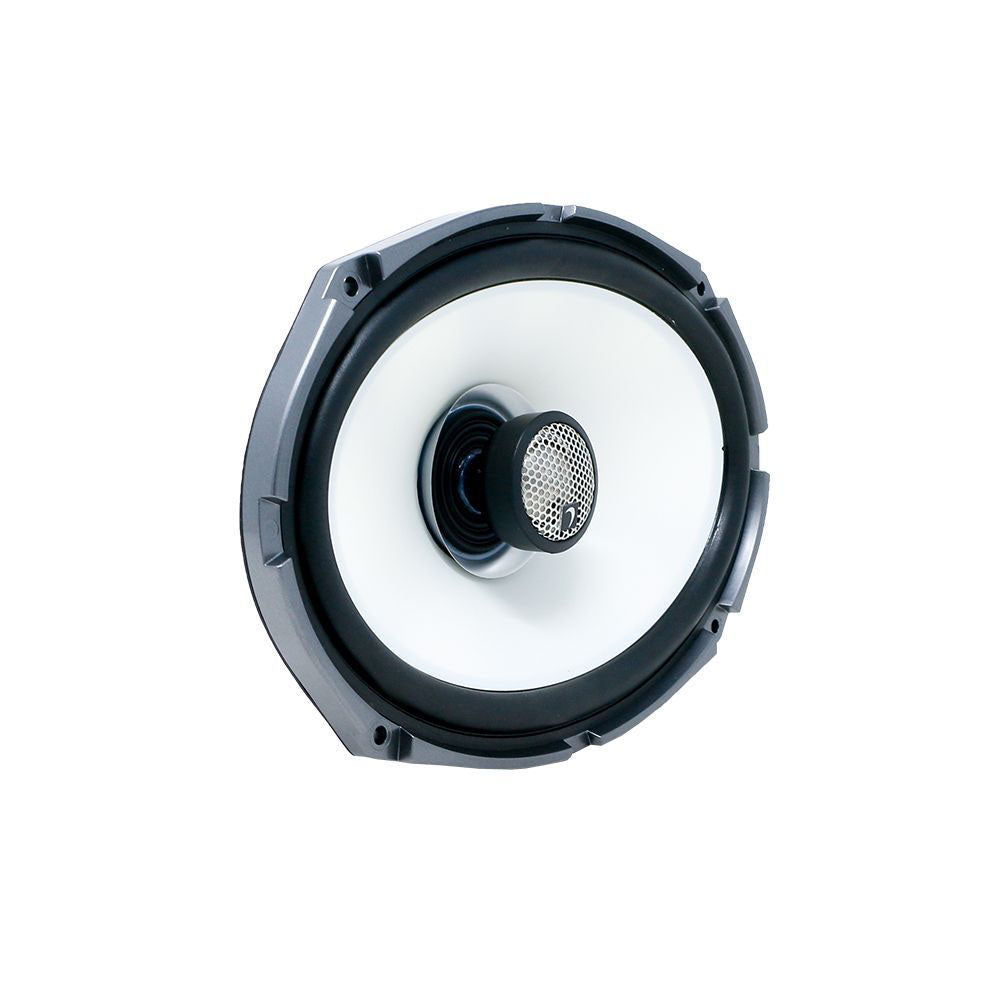

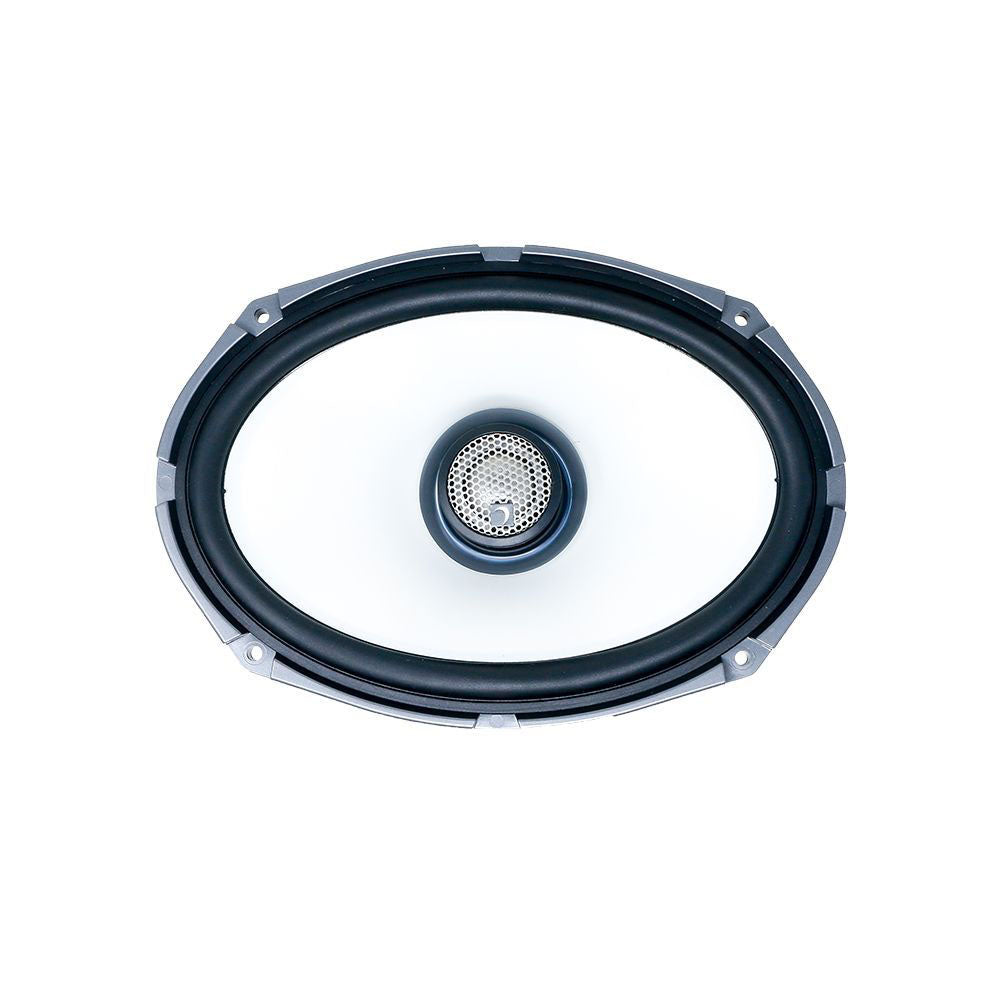

• Includes HXM69F2 Motor Sports 6” x 9” (2Ω) Marine Grade Speaker
• Includes Plug-n-Play Wire Harness W/ DLED Wiring

Specifications:

• Speaker Size: 6" X 9"
• Nominal Diameter (inch/mm): 6×9″ (152×229mm)
• Description: 2014+ Harley Davidson Cut in Lid Kit - MSHXM692LK (2Ω)
• Nominal Impedance (ohms): 2Ω
• RMS Power Rating: 150W
• Max Power Rating: 300W
• Frequency Response: 60-18KHz
• Voice Coil Diameter (inch/mm): 1.75 (44.7) Woofer/1" (25mm) Tweeter
• Power Handling (RMS/Peak): 150W/300W
• Types: 2-way
• Qts: 0.78
• Fs-Free Air Resonance (Hz): 70
• Vas (Liter): 0.689 (19.5)
• Xmax - Inch(mm): 0.16 (4)
• Sensitivity (1W/1M): 94dB
• Sensitivity (2.83V/1M): 97dB
• Mounting Diameter (inch/mm): 8.64×6.0″ (219.5×152.5mm)
• Mounting Depth: 3.15″ (80mm)
• Grille: OPTIONAL
