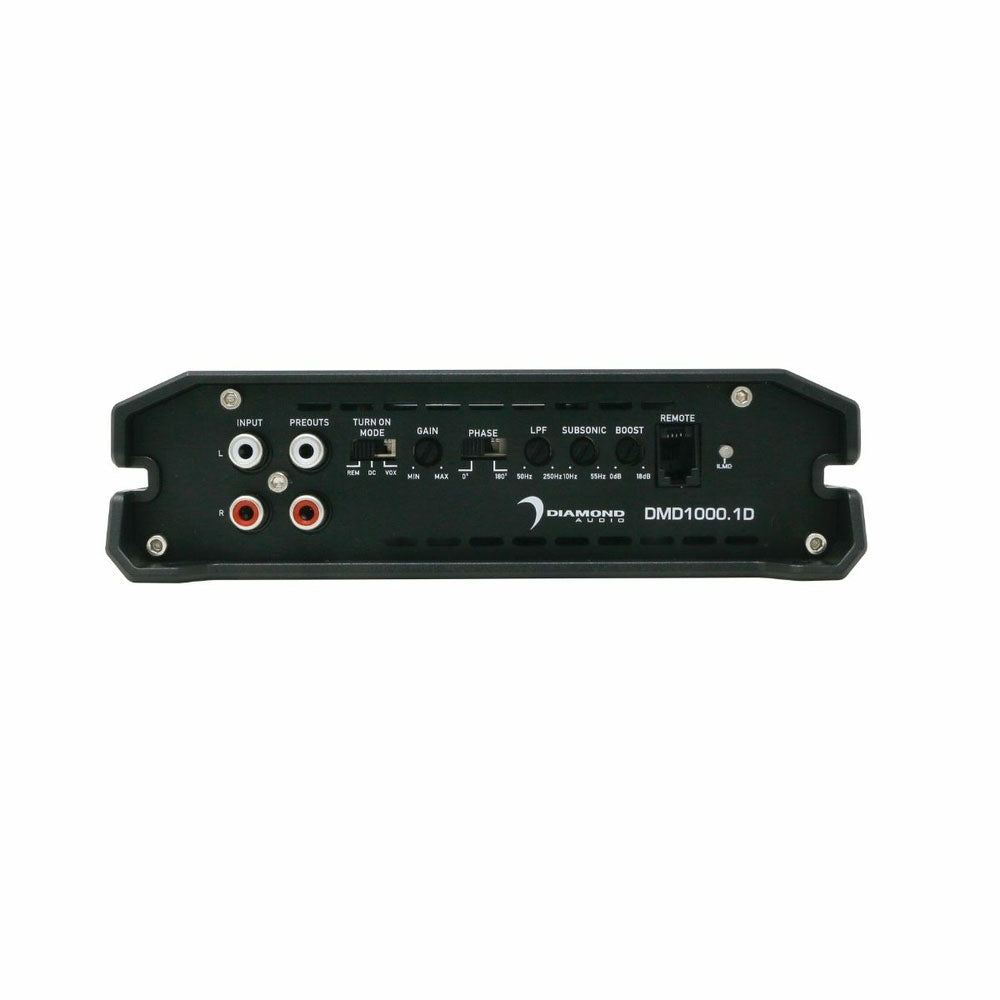

Diamond Audio DMD1000.1D 2000W Peak (1000W RMS) Class D Mono Car Amplifier - High Power Digital Audio System for Car Stereo, Subwoofer & Truck Audio Upgrade

Product Description

Features:

• Diamond Audio DMD Series Class D 2 ohms Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohms: 680 Watts x 1
• 2 ohms: 1000 Watts x 1
• 1 ohm: N/A
• Total RMS power output: 1000 watts
• Pulse Width Modulated MOSFET power supply
• LED Power/Protect Light
• Wired remote bass level control included
• Soft start turn-on
• Speaker-level (high-level) inputs
• Monoblock IR Chipset Digital Circuit Design
• Input sensitivity:
• Low level: 0.2 - 10 volts
• Frequency Response: 20 - 500 Hz
• Total Harmonic Distortion (THD): 0.03%
• Signal to Noise Ratio: > 90dB
• Crossover filter: 50 - 250 Hz (LPF), 24 dB Per Octave Slope
• Subsonic filter: 10 - 55 Hz
• Variable Bass Boost: 0 - 18 dB
• Fuse Rating: 120
• 4 AWG gauge power and ground wiring is recommended for installation.
• Dimensions: 6.85" W x 8.0" L x 1.9" H
