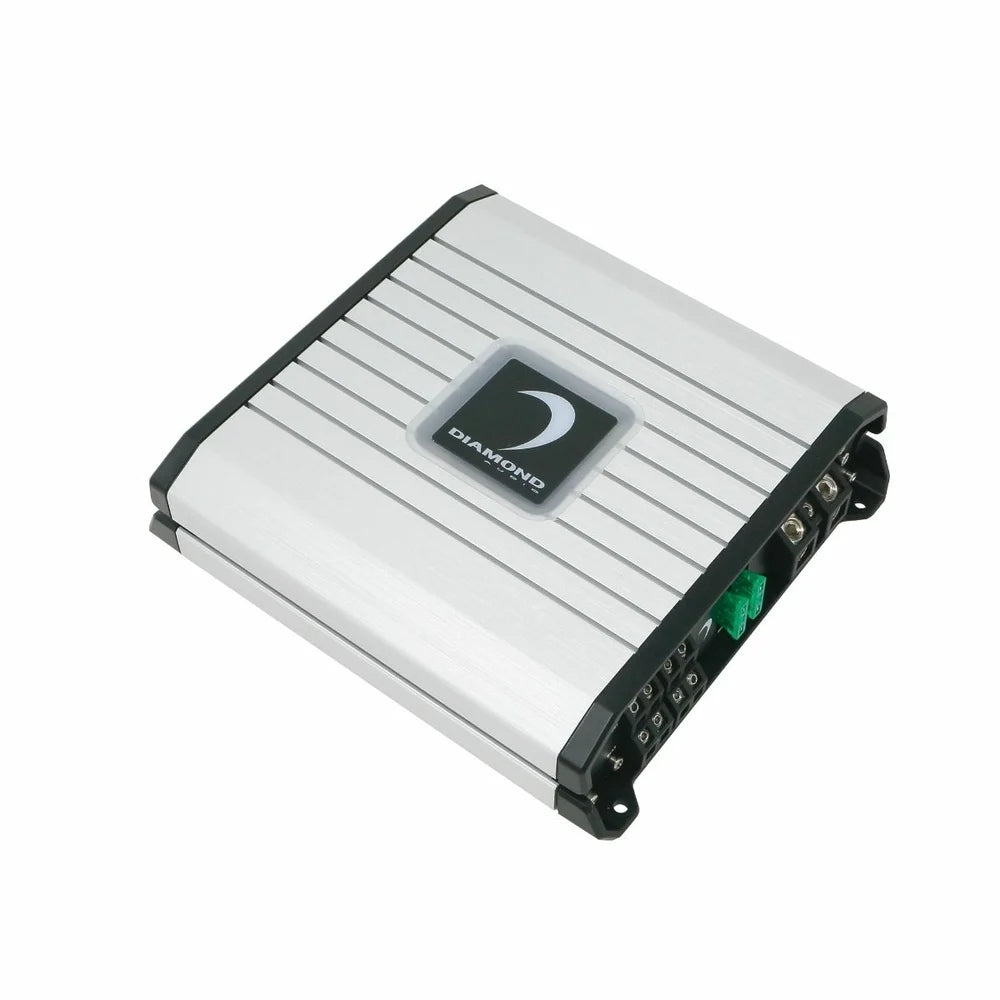

Diamond Audio DMD600.4D 600W RMS 4-Channel Class D Digital Car Amplifier - Premium Sound for Cars, Trucks & SUVs

Product Description

Features:

• Diamond Audio DMD Series Class D 2 ohms Stable 4-Channel Amplifier
• RMS Power Rating:
• 4 ohms: 150 watts x 4 channel
• 2 ohms: 100 watts x 4 channel
• Bridged, 4 ohms: 320 watts x 2 channel
• Total power output: 600 watts
• Switchable 2CH & 4CH Input Configuration
• Hidden Led Lights under Logo Badge indicate working status:Power/Protection
• Gain Input Sensitivity Clipping Indicators
• Full Range IR Chipset Digital Circuit Design
• DirectFET power Mosfet Output Stage
• Compact Size to easy Installation
• SMD Technology on 4 Layers FR4 PC Board
• Balanced Differential Inputs for Noise-Free Operation Regardless of the Source
• Audio Precision Quality Control Verification
• Input sensitivity:
• Low level: 0.2 - 10 volts
• Frequency Response: 20 - 20000 Hz
• Total Harmonic Distortion (THD): 0.05%
• Signal to Noise Ratio: 90 dB
• Variable low-pass filter: 35 - 350 Hz, 24 dB/octave
• Variable Bass Boost: bass boost at 50 Hz
• Fuse Rating: 120
• 8 AWG gauge power and ground wiring is recommended for installation.
• Dimensions: 6.85" W x 7.6" L x 1.9" H
