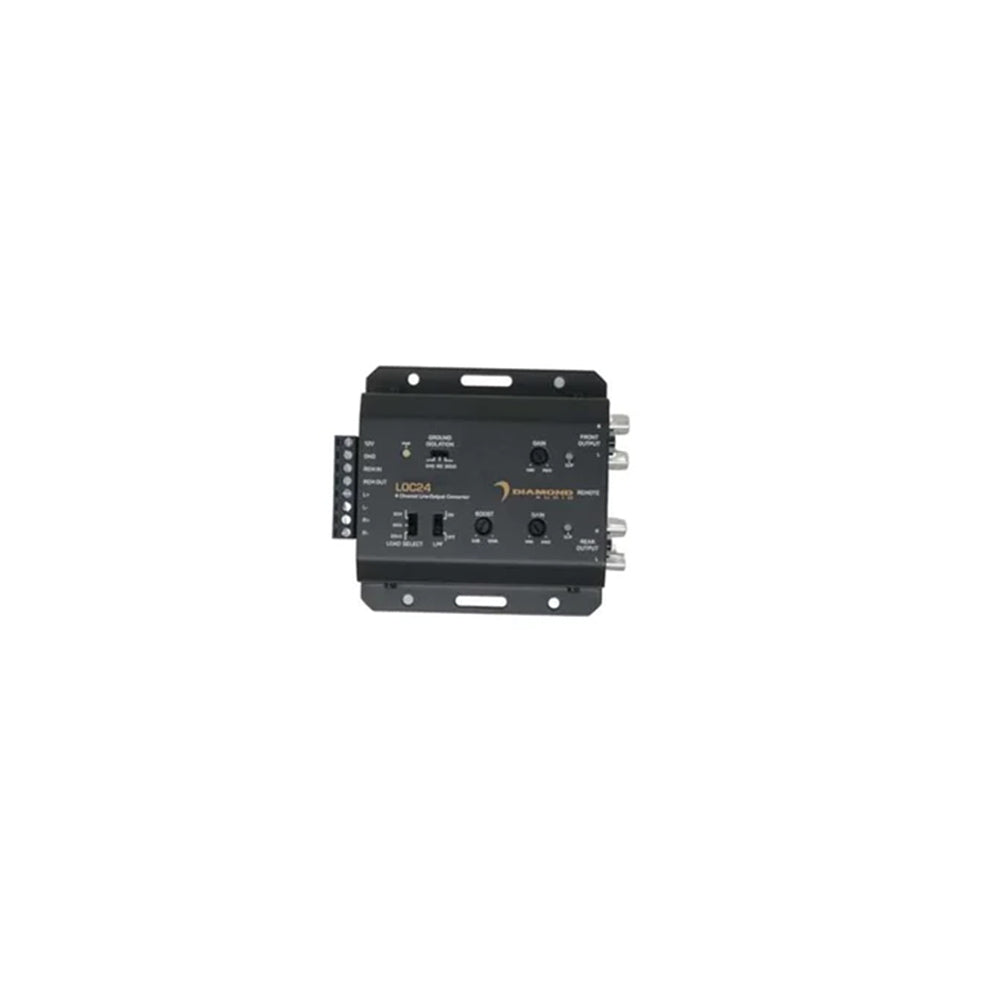

Diamond Audio LOC24 4 Channel (2 Input / 4 Output) Line Output Converter for Car Audio System - High Quality Sound Signal Adapter for Amplifiers & Subwoofers

Product Description

Features:

• 4-Channel (2 IN / 4 OUT) Line-Output Converter
• Ideal Interface for Adding an Aftermarket Amplifier
• Single Dial,Precision Matched, Stereo & Level Gain Adjustment
• Up to 40 Volts RMS High Level Input Sensitivity
• Up to 9.5 Volts RMS Low-level RCA Output
• Selectable 20Ω / 60Ω / 20KΩ Load Input Impedance
• Selectable GND / ISO / 200Ω Ground Isolation
• Bass Boost: 0-12dB
• Dimensions: 4.53" x 3.86" x 0.94" / 115.1 x 98 x 24 mm

Specifications:

• Number of Channels: 4
• Bass Boost: 0-12dB
• Dimension - Length x Width x Height - Inches(mm): 4.53” x 3.86” x 0.94” (115.1 x 98 x 24 mm)
