Diamond Audio HXM1200.1D 1200W Monoblock Class D Marine Amplifier - High Power Car Audio System for Boats, Cars & Motorcycles | Perfect for Marine & Motorsport Applications

Product Description

Features:

• Class D 1 ohms Stable Monoblock Amplifier
• RMS Power Rating:
  • 4 ohms: 550 watts x 1 channel
  • 2 ohms: 850 watts x 1 channel
  • 1 ohm: 1200 watts x 1 channel
• Total RMS power output: 1200 watts
• Top mounted controls for convenient adjustment
• Circuit board conformal coated (water resistant) for marine applications
• LED Power/Protect Light
• Wired remote bass level control included
• Soft start turn-on
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Input sensitivity:
  • Low level: 0.2mV - 10.0 volts
• Frequency Response: 10 - 350 Hz
• Total Harmonic Distortion (THD): 0.07%
• Signal to Noise Ratio: 97.4 dB
• Variable low-pass filter: 30 - 300 Hz
• Subsonic filter: 10 - 55 Hz
• 4 AWG gauge power and ground wiring is recommended for installation.

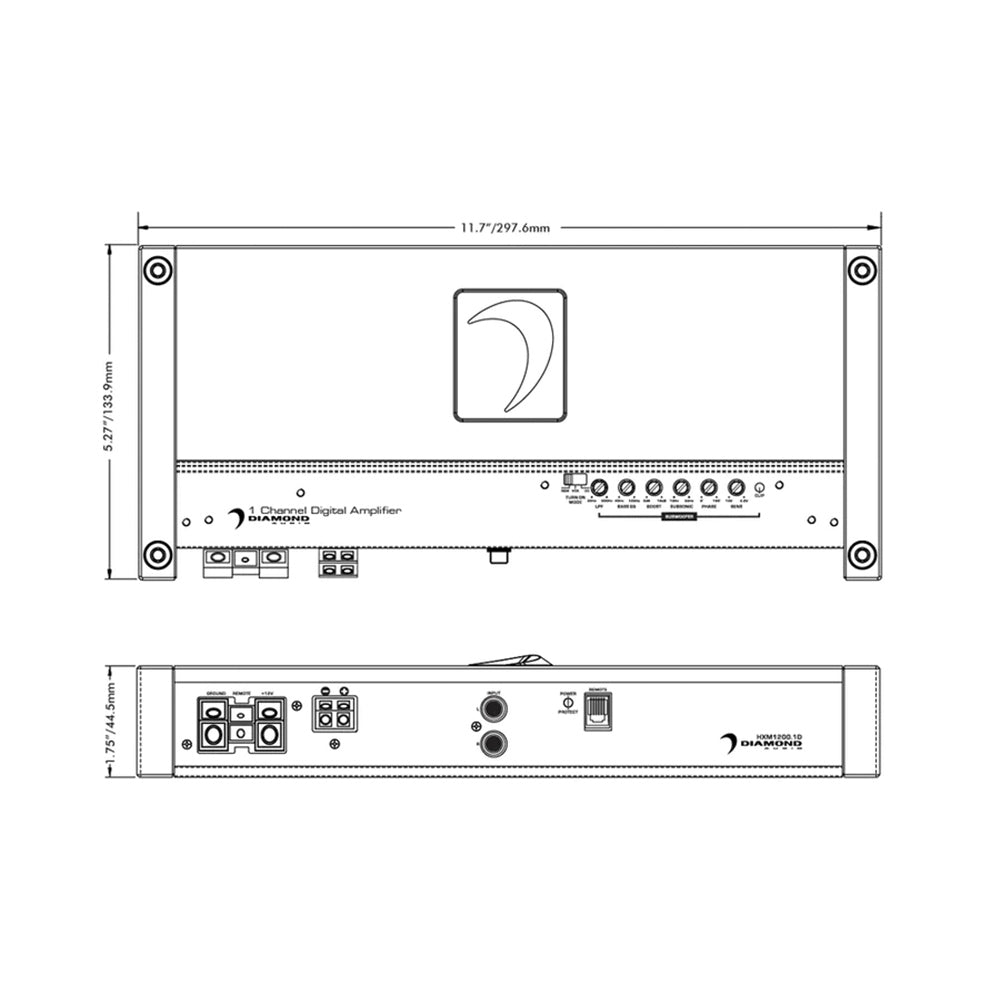

• Dimensions: 5.27" W x 11.72" L x 1.75" H

Specifications:

• Marine Certified: Yes
• Amplifier Class: D
• Number of Channels: 1 - Mono
• Total Peak Power Output: 2400 watts
• Total RMS Power Output: 1200 watts
• Maximum Input Gauge Size: 4 AWG
• Minimum Impedance Unbridged: 1 ohms
• Minimum Impedance Bridged: 4 ohms
• Frequency Response: 10 - 350 Hz
• THD at Rated RMS Power: 0.07%
• Speaker Level Inputs: No
• Built-in Crossover: Low-Pass (LP), Subsonic
• Low-Pass Crossover Frequency: 30 - 300 Hz
• Subsonic Filter: 10 - 55 Hz
• Signal-to-Noise Ratio: 97.4 dB
• Remote bass/level controller: Yes
• Fan Cooled: No
• Low-Level Input Sensitivity: 0.2mV - 10.0 volts
