Violectric V800 USB Upgrade Board - 24bit/192kHz High-Resolution Audio DAC for Audiophiles - Perfect for Home Studio & Hi-Fi Sound Systems

Product Description

With the Violectric USB options it is possible to retrofit Violectric headphone amps and D/A converter with a USB input with 24 bit and up to 192 kHz. The USB type-B input can be used to connect a computer, tablet or mobile phone.

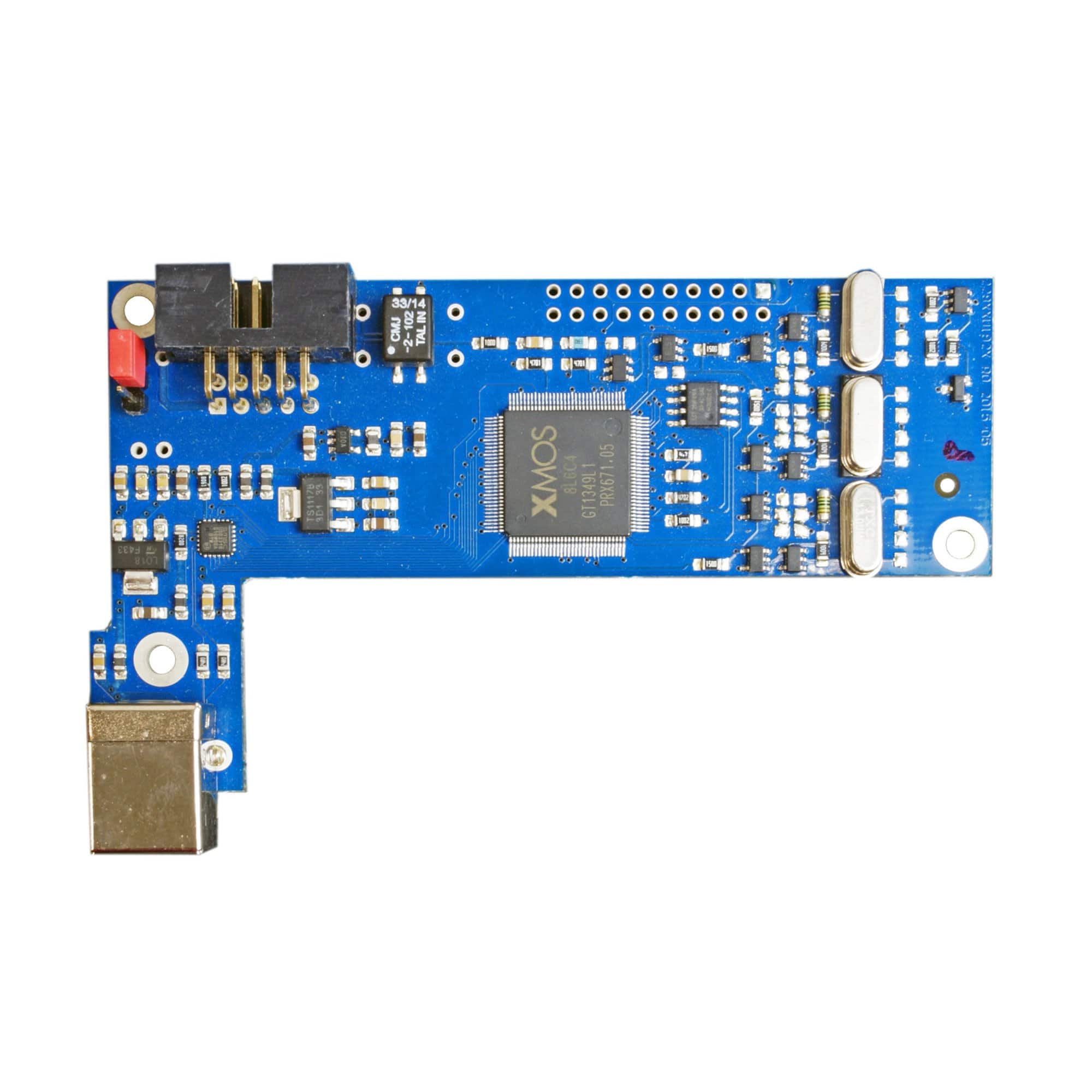

The circuit is designed around an USB receiver which supports the so called „asynchronous“ mode with a separate 24 Bit D/A converter. This offers impressive 115 dB dynamic range with -103 dB THD+N and is implemented in an audiophile analog circuit. The USB receiver is powered by the external device and is handling over the digital audio data by means of a transformer to the input circuitry of the following circuitry. This means that the external device and D/A converter are completely galvanically isolated to avoid any hum or noise issues from the external device.

• The 96 kHz options require no audio driver.
• The 192 kHz Tenor chip-sets are recommended for: Windows XP, Vista, 7, 8, 10 (driver required)
• The 192 kHz X-Mos chip-sets are recommended for: Mac (no driver required) Windows 7, 8, 10 (driver required)
