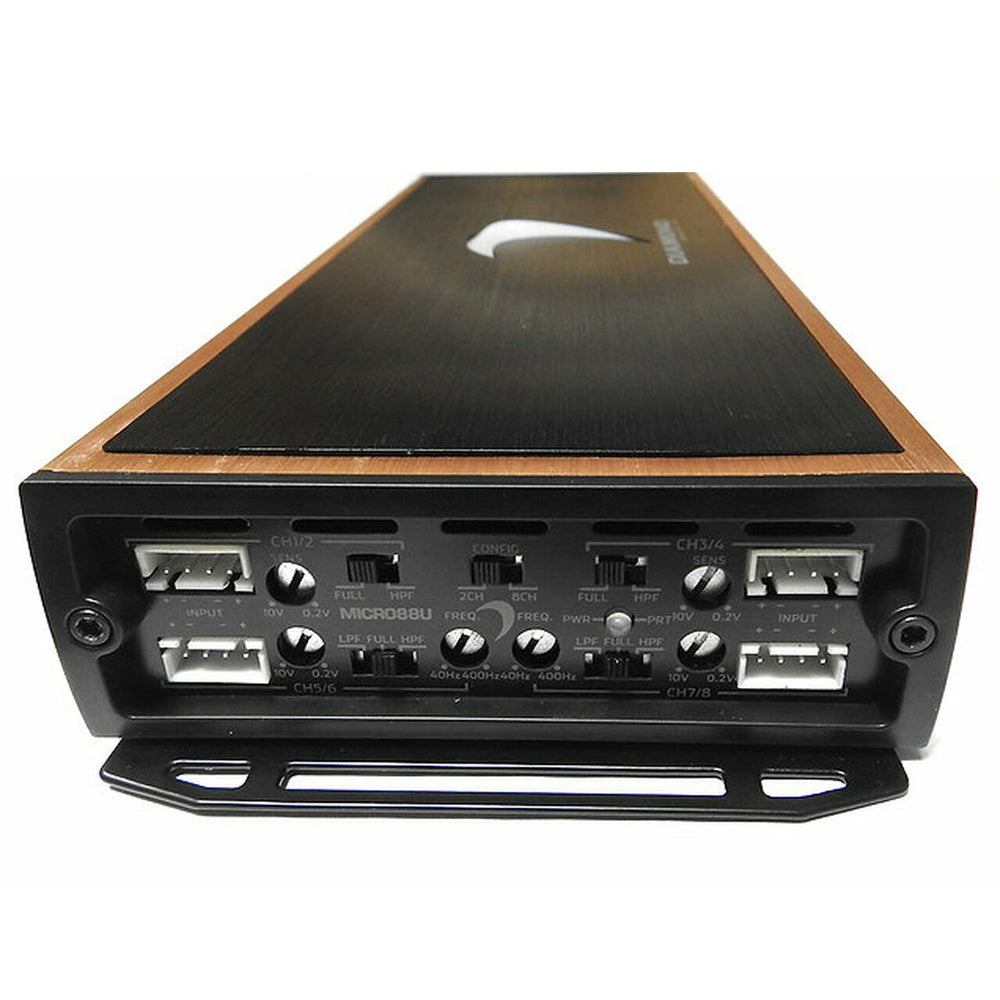

Diamond Audio MICRO88U 1000W RMS 8-Channel Class D Car Amplifier - High Power Full Range Audio for Car Stereo Systems | Perfect for SUVs, Trucks & Custom Car Audio Upgrades

Product Description

Diamond Audio continues to break new dimensions by introducing the MICRO8U series of amplifiers for 2018. Following in the footsteps of the highly popular MICRO series amplifiers, the big-brother MICRO8U series packs more power and performance! Developed and engineered from the ground up, these new amplifiers deliver more power and are conformal-coated for all-weather applications and outdoor environment use. All MICRO8U models have the same platform and dimension size (excluding the MICRO85U & MICRO88U) for a more aesthetically pleasing installation/fabrication setup to match its subtle yet elegant cosmetics to give it that signature Diamond Audio visage.

Features:

• Diamond Audio Micro Series Class D 2 ohms Stable 5-Channel Amplifier
• RMS Power Rating:
• 4 ohms: 75 watts x 8 channel
• 2 ohms: 100 watts x 8 channel
• Bridged: 200 watts x 4 channel @ 4 ohms
• Total power output: 1000 watts
• Pulse Width Modulated MOSFET power supply
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Input sensitivity:
• Low level: 200mV - 10V volts
• Frequency Response: 10 - 35 Hz
• Total Harmonic Distortion (THD): 0.5%
• Signal to Noise Ratio: -85 dB
• Variable high-pass filter: 40 - 400 Hz, 24 dB/octave
• Variable low-pass filter: 40 - 400 Hz, 24 dB/octave
• Fuse Rating: 40
• 8 AWG gauge power and ground wiring is recommended for installation.
• Dimensions: 4" W x 11.44" L x 1.6" H
