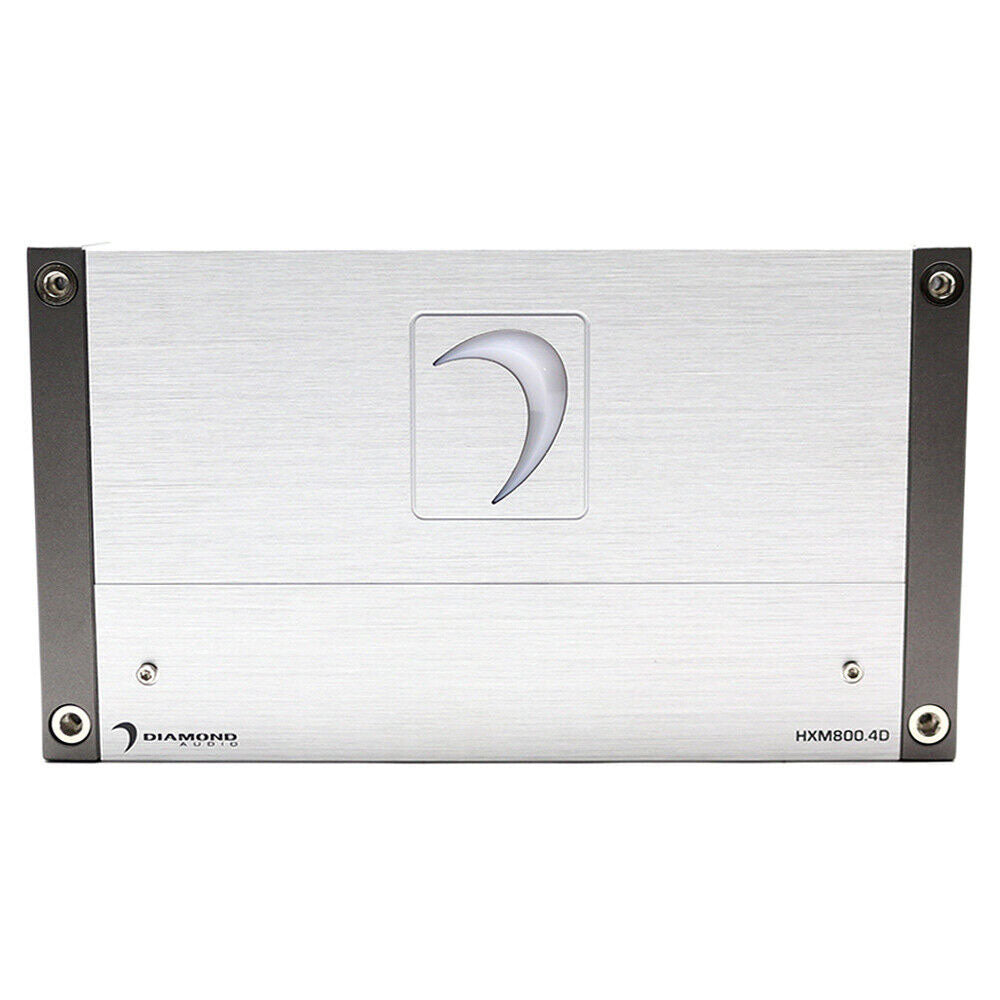

Diamond Audio HXM800.4D 800W RMS 4-Channel Marine Amplifier - Motorsport Series, Class D Full Range for Boats, Yachts & Watercraft | Perfect for Marine Audio Systems & Outdoor Adventures

Product Description

Features:

• Motorsport Series 4-Channel Full-Range Class-D Marine Amplifier
• Power Output:
• 125 W x 4 @ 4Ω
• 200 W x 4 @ 2Ω
• Ultra-compact, high density aluminum alloy chassis provides superior thermal stability
• Four layer, glass epoxy circuit board for enhanced performance and reliability
• Circuit board conformal coated (water resistant) for marine applications
• Full Range Class D amplifier technology
• Bridgeable for high power operation
• Balanced differential inputs for superior noise rejection
• Input sensitivity from 200mV to 10V accepts Line (RCA) and Speaker level input
• Selectable auto-turn-on modes: Signal Sensing (VOX),12V Remote (REM) and DC offset (DC)
• Fully variable, 12 dB per octave, electronic crossover
• Full range, line level outputs provided to send signal to another amplifier
• Adjustable Bass EQ (MICRO-USB) to connect our optional Bluetooth receiver-controller
• Top mounted controls for convenient adjustment
• Integrated soft clip light for quick system set-up
• Illuminated logo
• THD: 0.07%
• S/N Ratio: < 77.2 dB
• Low Input Level: 0.2mV - 10.0V
• Bandwith: 10-35k Hz
• Variable High-Pass: 40-400Hz @ 12dB / Oct
• Variable Low-Pass: 40-400Hz @ 12dB / Oct
• Bass Remote Included
• Dimensions: 9.74"L x 5.27"W x 1.75"H
