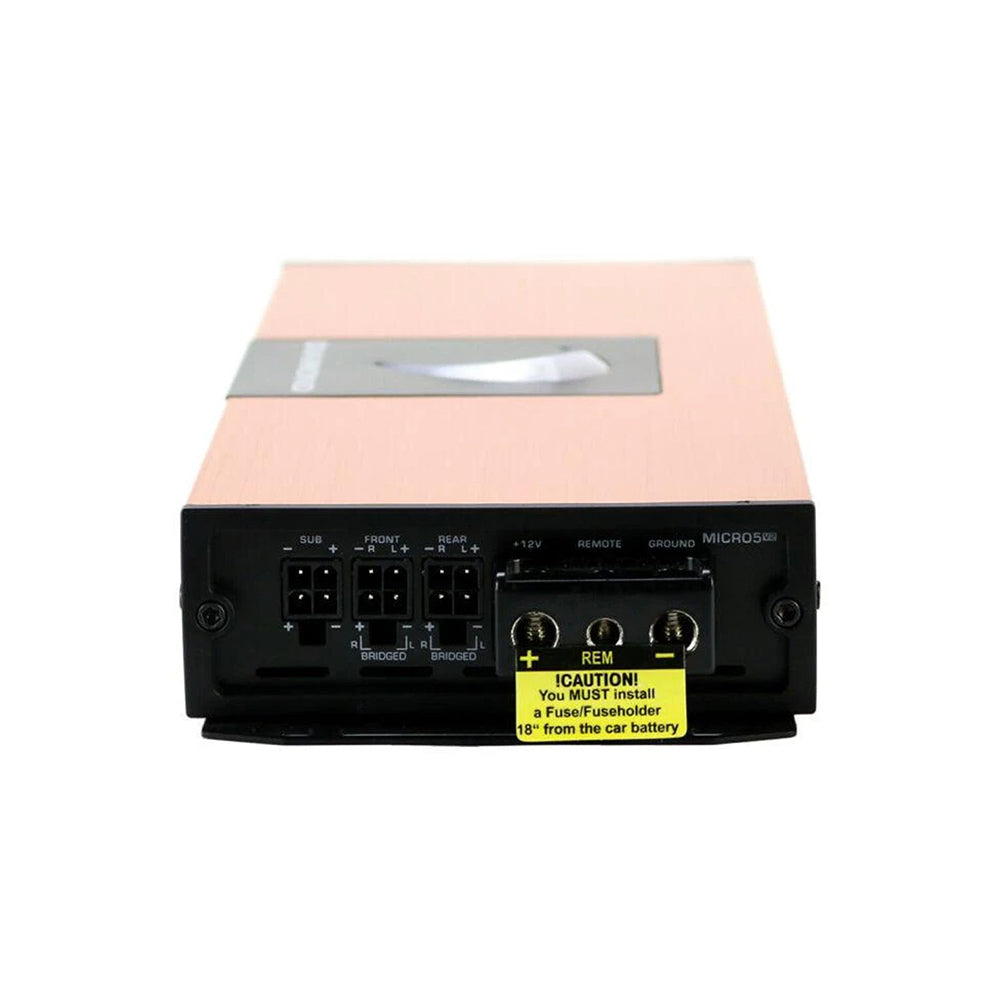

Refurbished Diamond Audio MICRO5V2 900W RMS 5-Channel Class D Car Amplifier - High Power Full Range Audio for Cars, Trucks & SUVs | Perfect for Upgrading Your Vehicle Sound System

Product Description

Sound quality in a small footprint can be found in Diamond Audio’s MICROV2 series of amplifiers. Featuring ultra-efficient full-range Class D topology, these compact amplifiers deliver huge power for their size! The added feature of advanced Rollback/Thermal protection that allows you to enjoy continuous and uninterrupted play without shutting down. Installation possibilities are endless! When you’re looking for quality and performance in a small package, look to MICROV2 from Diamond Audio.

Features:

• Diamond Audio Micro Series Class D 2 ohms Stable 5-Channel Amplifier
• RMS Power Rating:
• 4 ohms: 80 watts x 4 channel
• 2 ohms: 150 watts x 4 channel
• Bridged: 300 watts x 2 channel
• Total power output: 900 watts
• Four layer, glass epoxy circuit board for enhanced performance and reliability
• Pulse Width Modulated MOSFET power supply
(Updated as needed)
• Balanced differential inputs for superior noise rejection
• Wired remote bass level control included
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Input sensitivity:
• Low level: 200mV - 10.0 volts
• Frequency Response: 10 - 35 Hz
• Total Harmonic Distortion (THD): 0.5%
• Signal to Noise Ratio: -85 dB
• Variable high-pass filter: Flat or Fixed 70Hz, 24 dB/octave
• Variable low-pass filter: 40 - 400 Hz, 24 dB/octave
• Fuse Rating: 60
• 8 AWG gauge power and ground wiring is recommended for installation.
• Dimensions: 4.0" W x 10.65" L x 1.46" H

THREE MONTHS LIMITED WARRANTY
