SMSL Audio DL200 High-Resolution Headphone Amplifier & DAC with Bluetooth 5.0 - Perfect for Audiophiles, Studio Monitoring & Home Entertainment Systems

Product Description

This supports PCM playback up to 32-bit/768kHz and DSD512

DL200 is capable of directly sampling PCM digital audio up to 32-bit/768kHz without downsampling. It also supports Native DSD playback up to DSD512 without conversion. Optical/coaxial input supports DoP64.

7 PCM filters DPLL function

A filter is a step in converting PCM digital audio to an analog signal. It mainly acts on high-frequency signals after about 20khz. The 7 modes of DL200 are shown in the figure below.

DPLL1~9, When the clock stability of the input signal is not good, the sound may be interrupted. Increasing this value can avoid the occurrence of audio interruption!

Performance-grade headphone amplifier

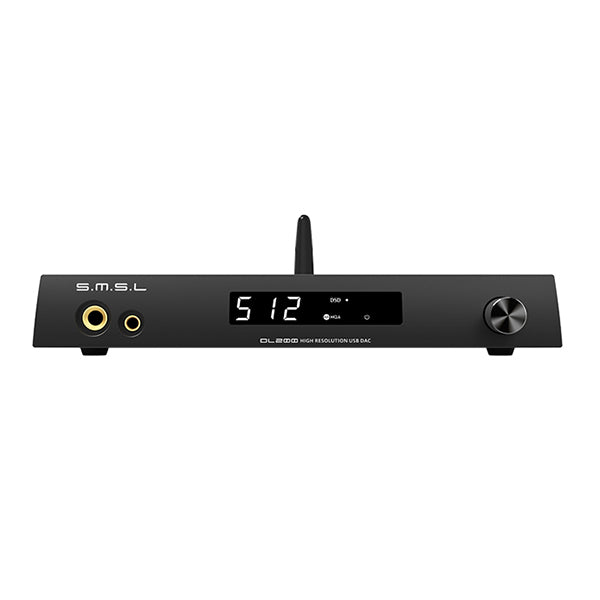

Provide 6.35mm single-ended headphone jack and 4.4mm balanced headphone jack on the front panel, built-in headphone amplifier with excellent performance. The balanced line output on the back adopts TRS 6.35mm interface, and the output amplitude can reach 5.0Vrms.

USB Dual Mode 2.0/1.1

You can switch between 2 different USB modes in the menu. To use USB2.0, you need to install the driver and support 768kHz/ 32bit high bit rate audio files. Use the USB1.1 mode to support audio files up to 96kHz/24bit bit rate without driver, and directly connect to multiple devices to output audio. Can be connected to game consoles, TVs, Androids, and more.

Support MQA / MQA-CD full decoding

DL200 is a complete MQA decoder, which will fully expand MQA music files to provide high-quality sound sources. At this playback level, you will fully hear the content created by the artist in the studio.

Qualcomm Bluetooth chip Support LDAC, apt-X HD

Using a modular Bluetooth solution and an external Bluetooth antenna, the signal stability and transmission quality have been improved in an all-round way. Push HiFi to wireless.

ES 9039 Q2M | 32-bit High performance 2 Channel DAC

The ES9039Q2M uses the newest ESS patented HyperStream® IV Dual DACT™ technology, and advanced SABRE HIFI® architecture. The ES9039Q2M delivers a performance level that will satisfy the most demanding audiophile and pro-audio enthusiast.

APX 555 B Test Results

The measured distortion of DL200 is as low as 0.00006% the balanced output SNR is 130dB, and the dynamic range is 130dB. It has excellent hardware performance indicators!
